W Lim Wave I External Pond Pump
W Lim Wave I External Pond Pump
Regular price
$521.00 USD
Sale price
$521.00 USD
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping on equipment
Oversized item — ships direct from the factory by UPS Ground; the rate is calculated at checkout. No free-shipping threshold on pumps and UV sterilizers. Free pickup at our Miami store.

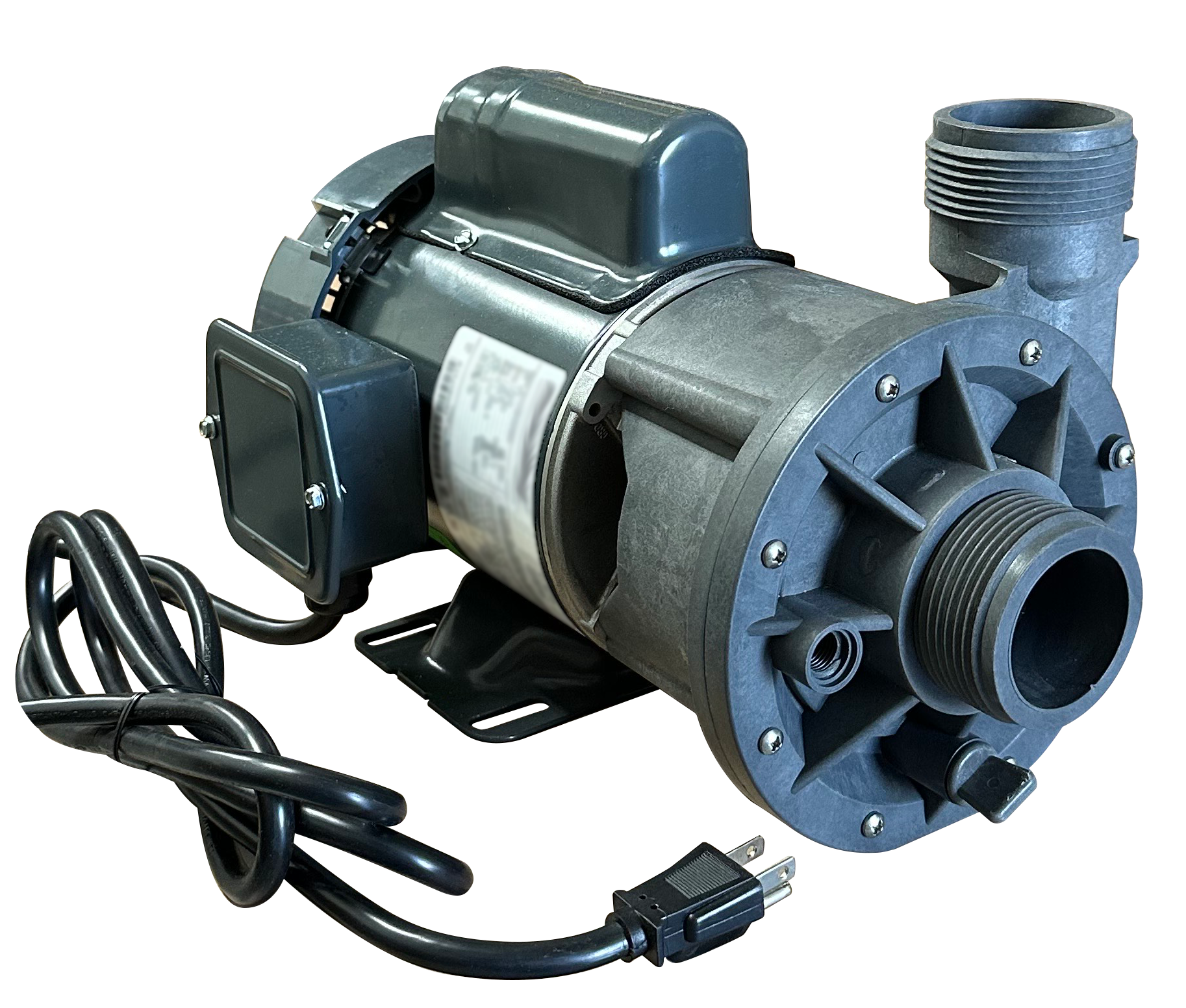

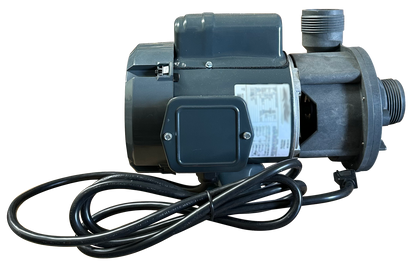

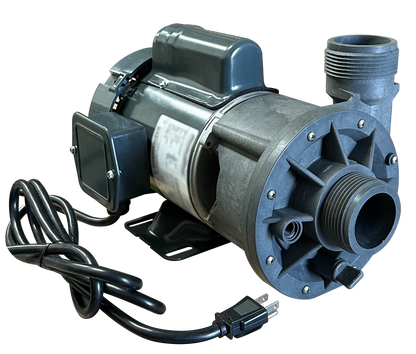

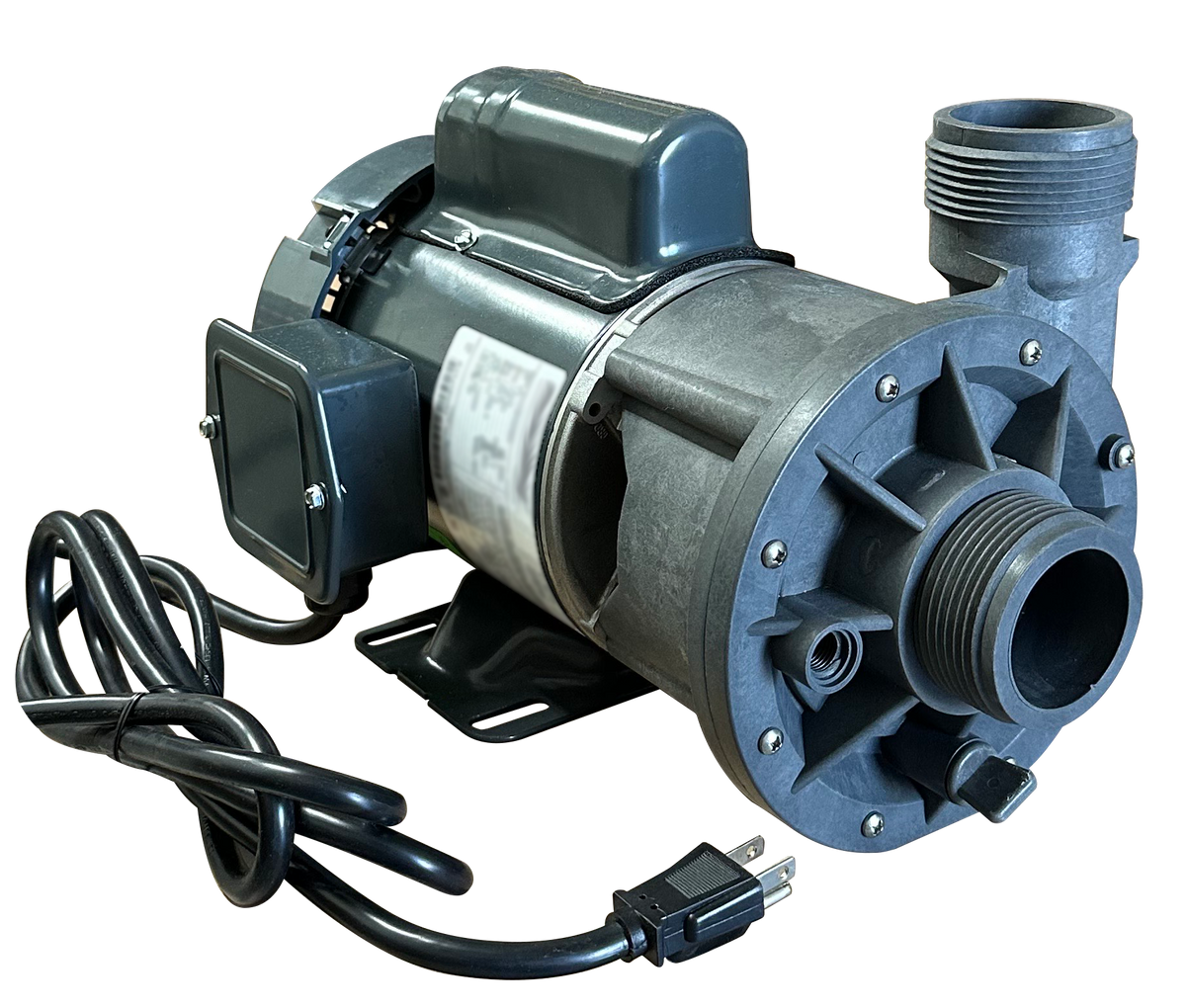

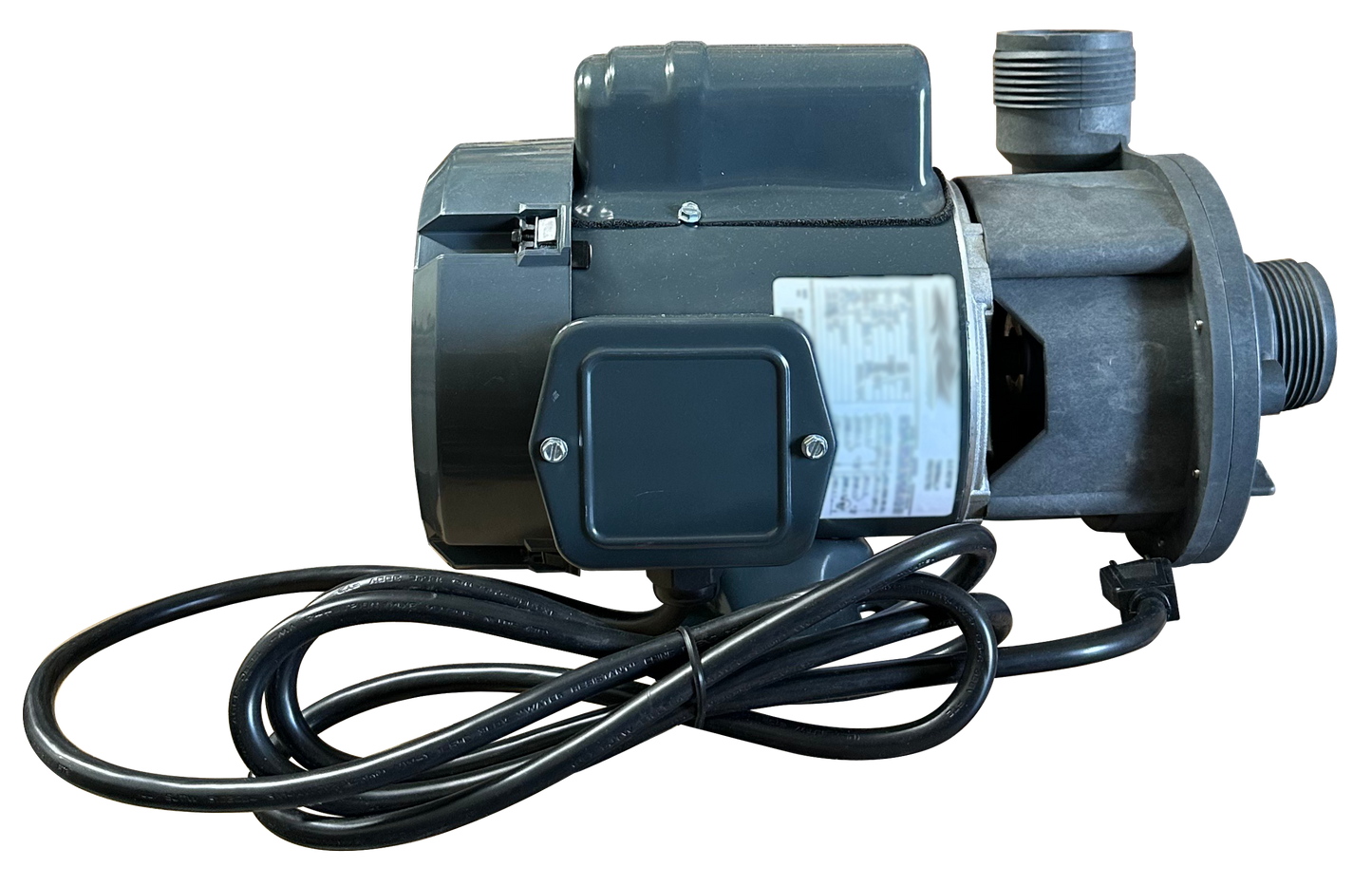

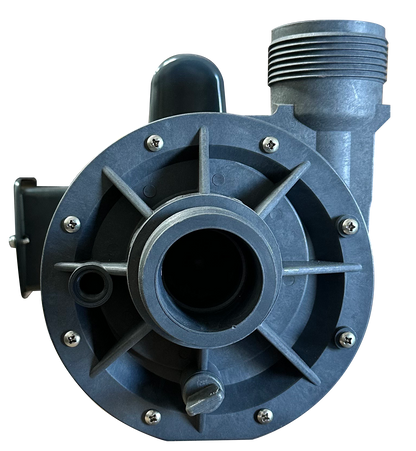

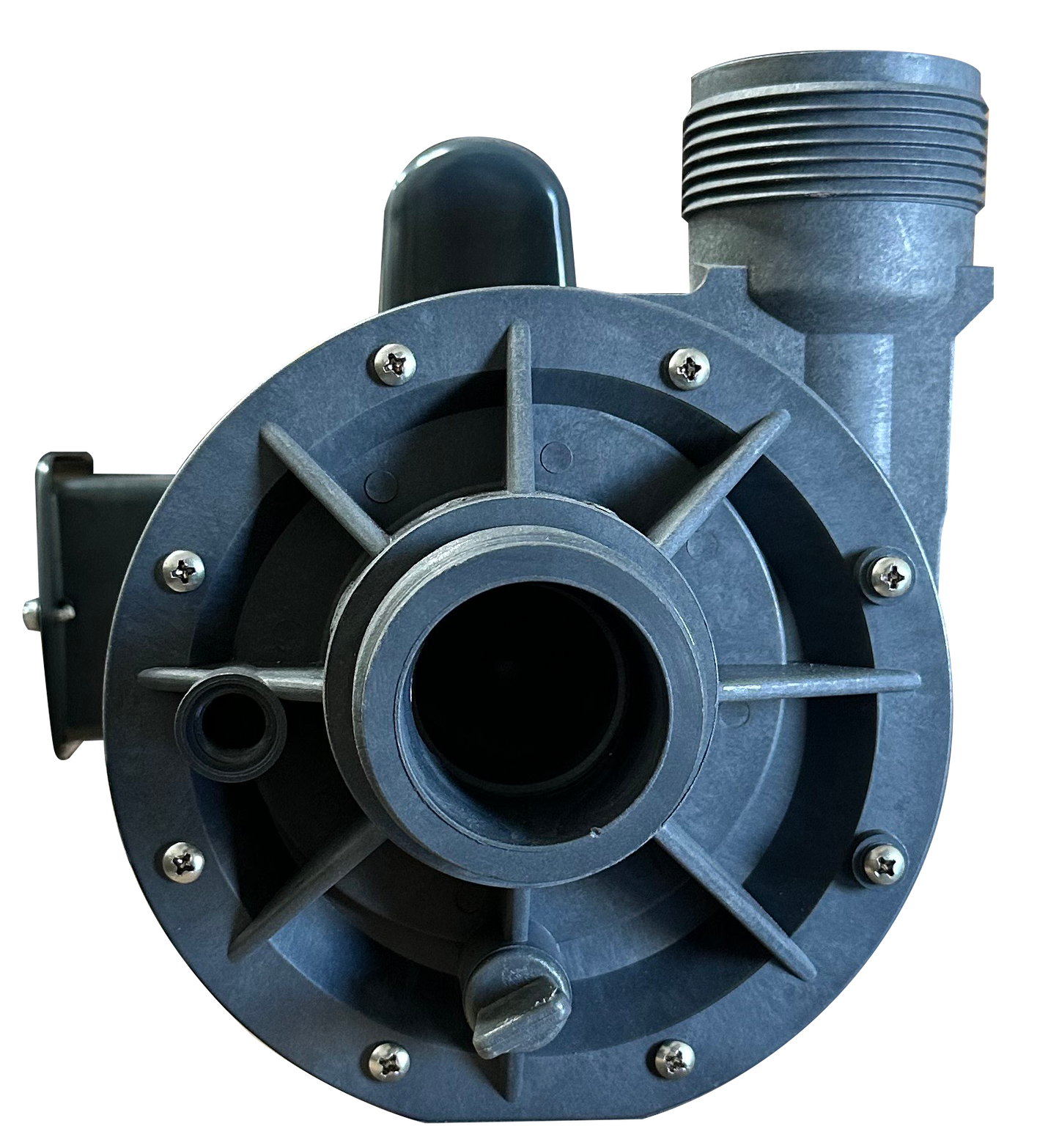

W. Lim's entry external pond pump — a continuous-duty centrifugal built for constant circulation on koi ponds and water features. Low wattage per gallon moved makes it the practical choice where the pump runs 24 hours a day and power cost, not peak flow, is what matters.
Specifications
| Model | SKU | HP | Max head | Max amps | Flow at head | Max GPH / GPM | Watts | RPM | Volts | In / Out |
|---|---|---|---|---|---|---|---|---|---|---|
| Wave I 2700 | — | 1/15 HP | — | — | — | 2,700 GPH | — | — | — | Open drip |

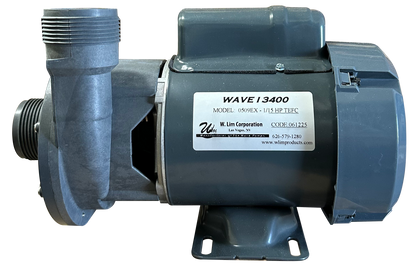

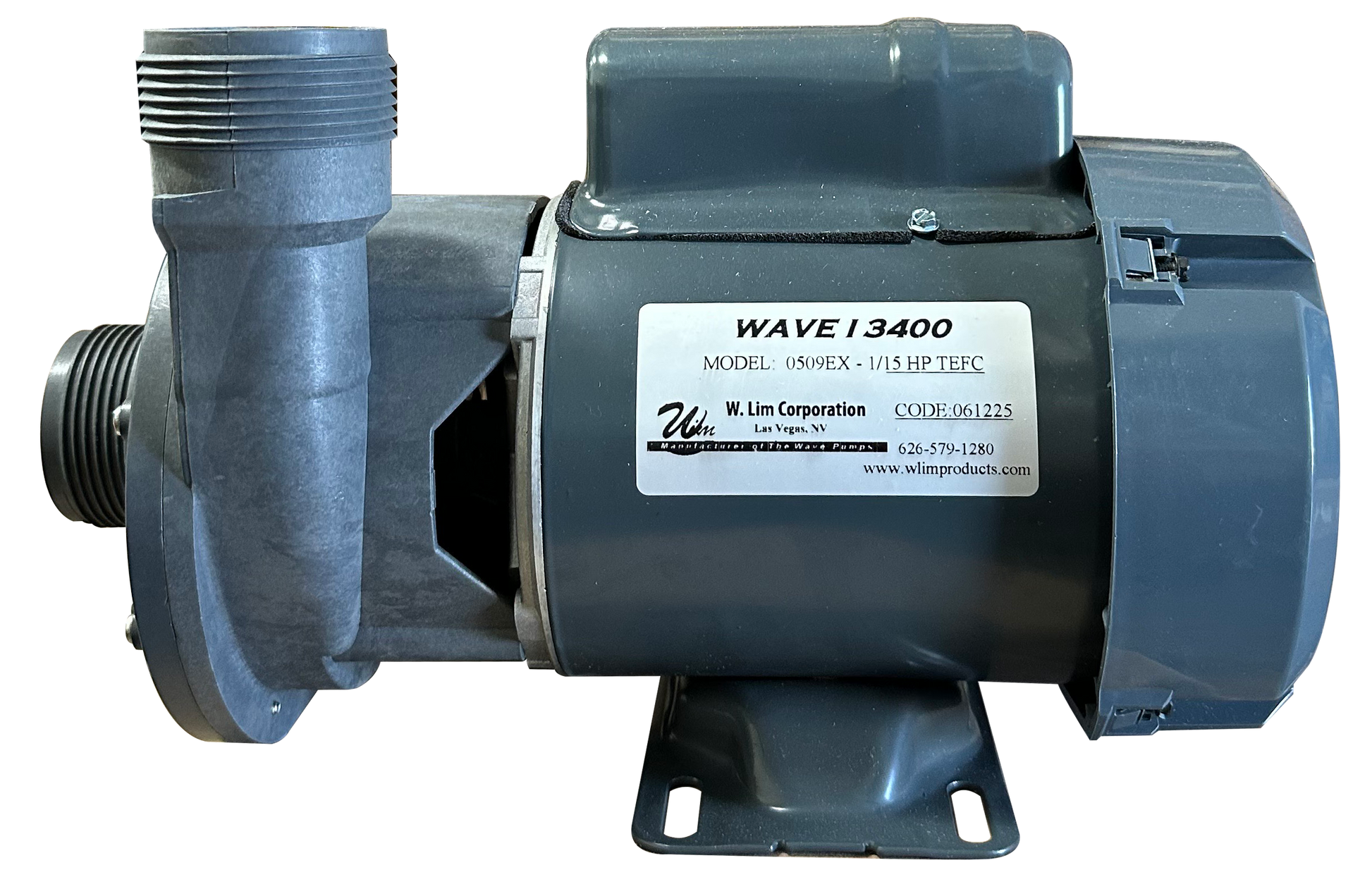

| Wave I 3400 | 0509EX | 1/15 HP | 17 ft | 1.37 A | 3,480 GPH @ 2.8 ft | 3,420 / 57 | 190 W | 1725 | 115/230 | 1.5" |
| Wave I 4800 | 0501 | 1/6 HP | 24 ft | 2.34 A | 4,392 GPH @ 8.66 ft | 4,800 / 80 | 262 W | 1725 | 115/230 | 2" |
| Wave I 6000 | 0503 | 1/4 HP | 24 ft | 3.23 A | 5,976 GPH @ 9.24 ft | 6,000 / 100 | 371 W | 1725 | 115/230 | 2" |

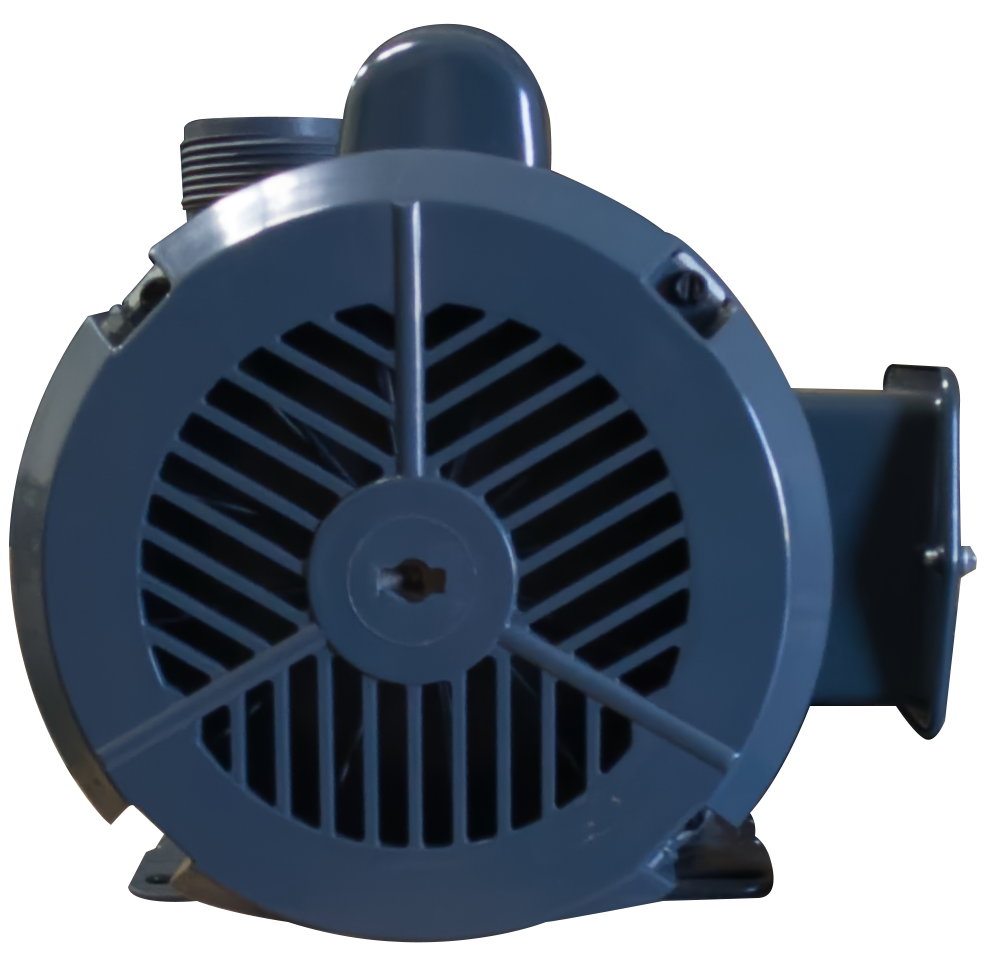

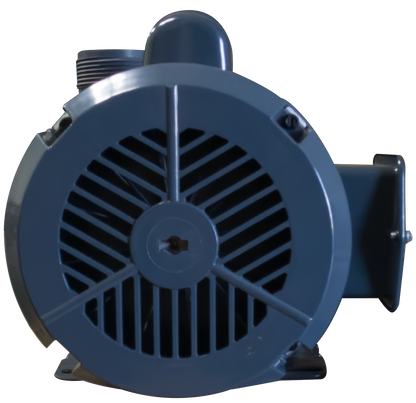

Motor: TEFC (totally enclosed, fan cooled) · Dimensions: 21 × 13 × 12 in · Weight: 28 lb
Flow at head is the figure W. Lim publishes on its pump sizing chart — real delivered flow against a stated lift, which is more useful than the max GPH rating on its own. W. Lim does not publish sizing-chart data for the Wave I 2700.
