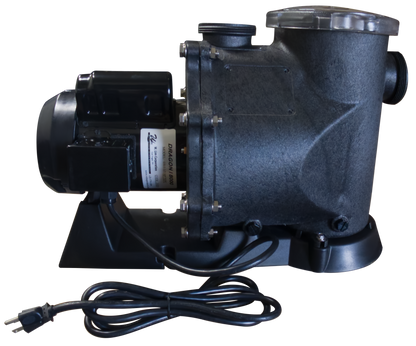

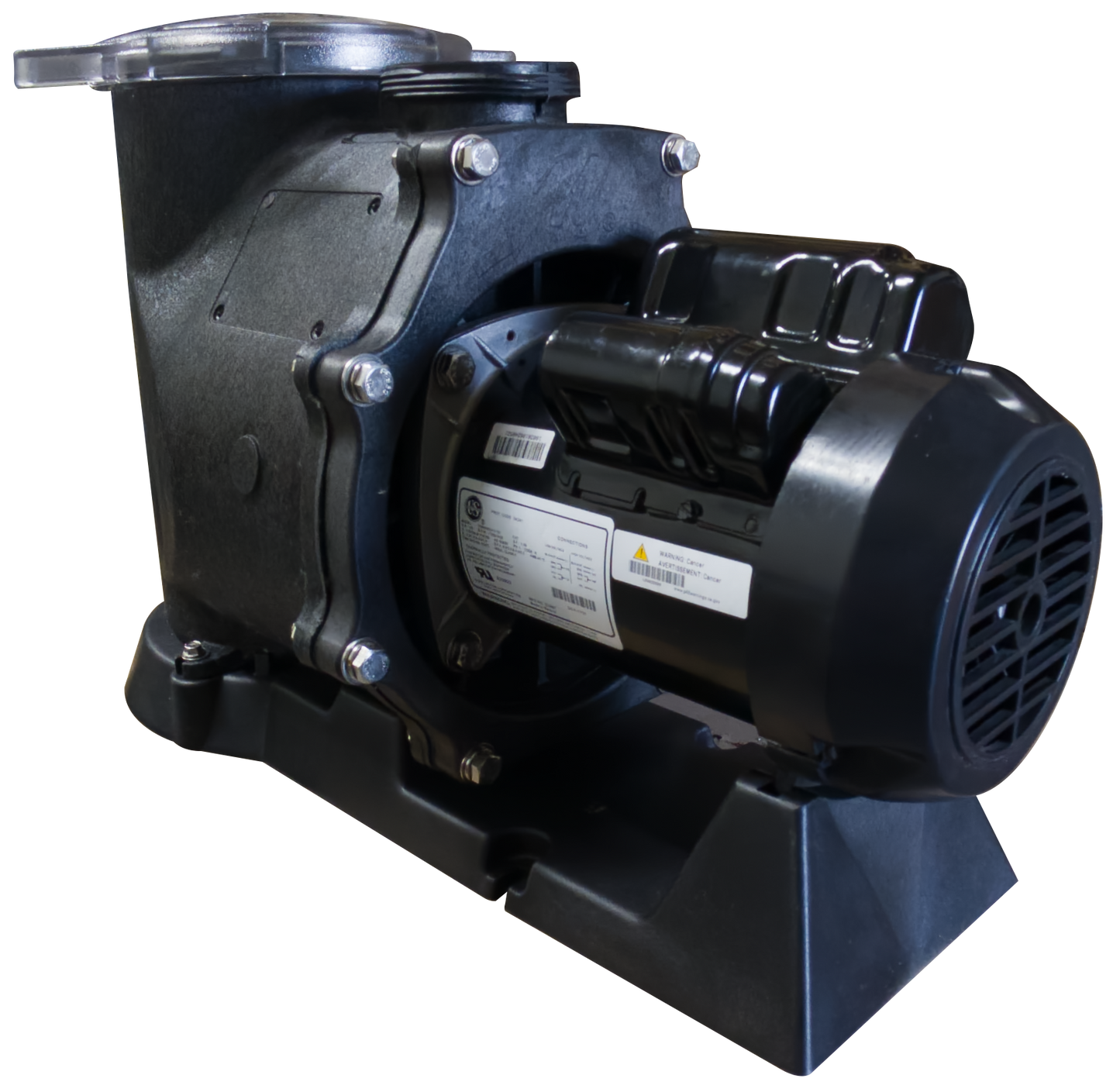

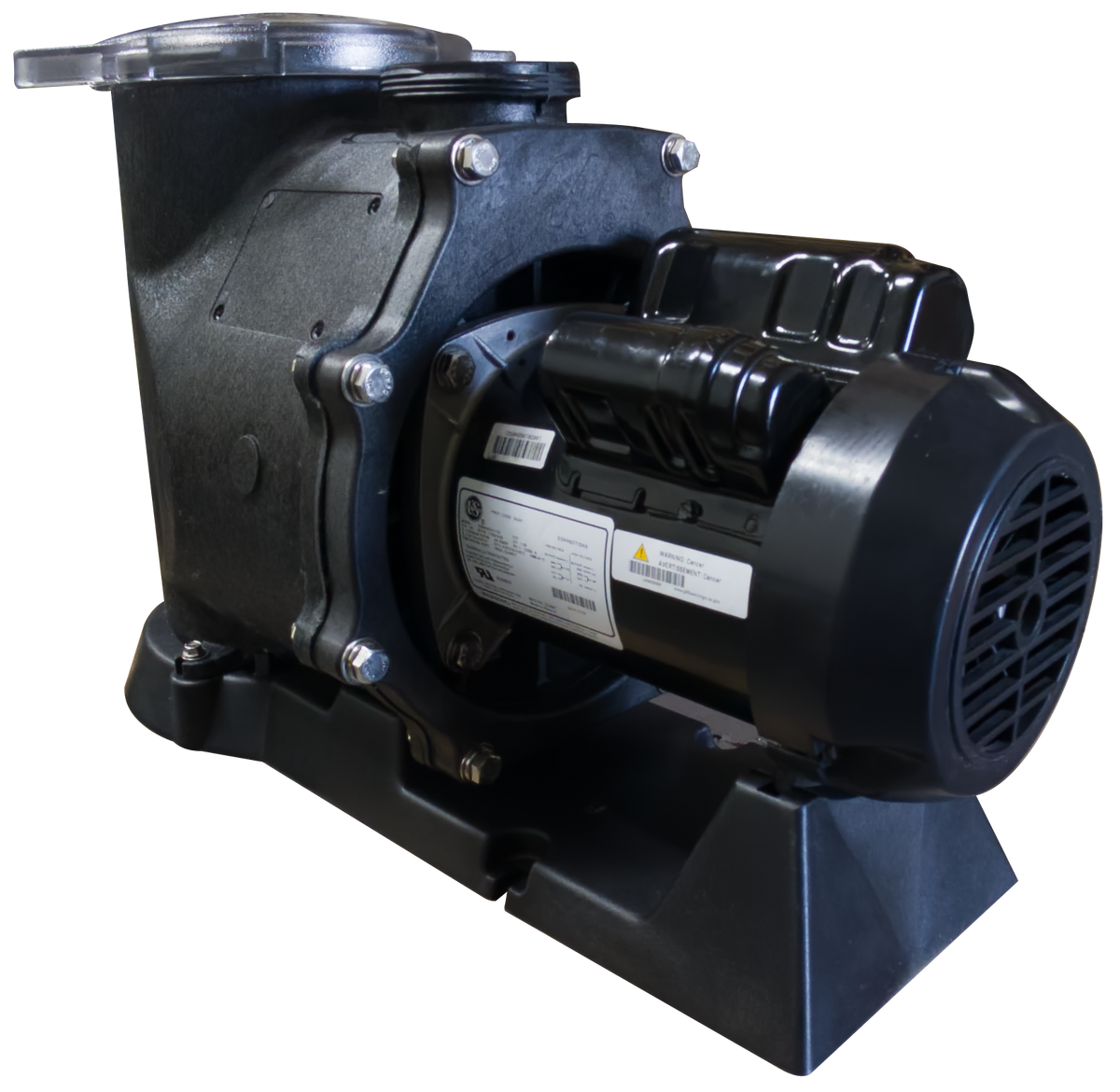

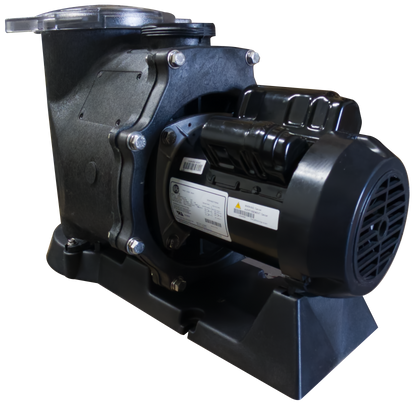

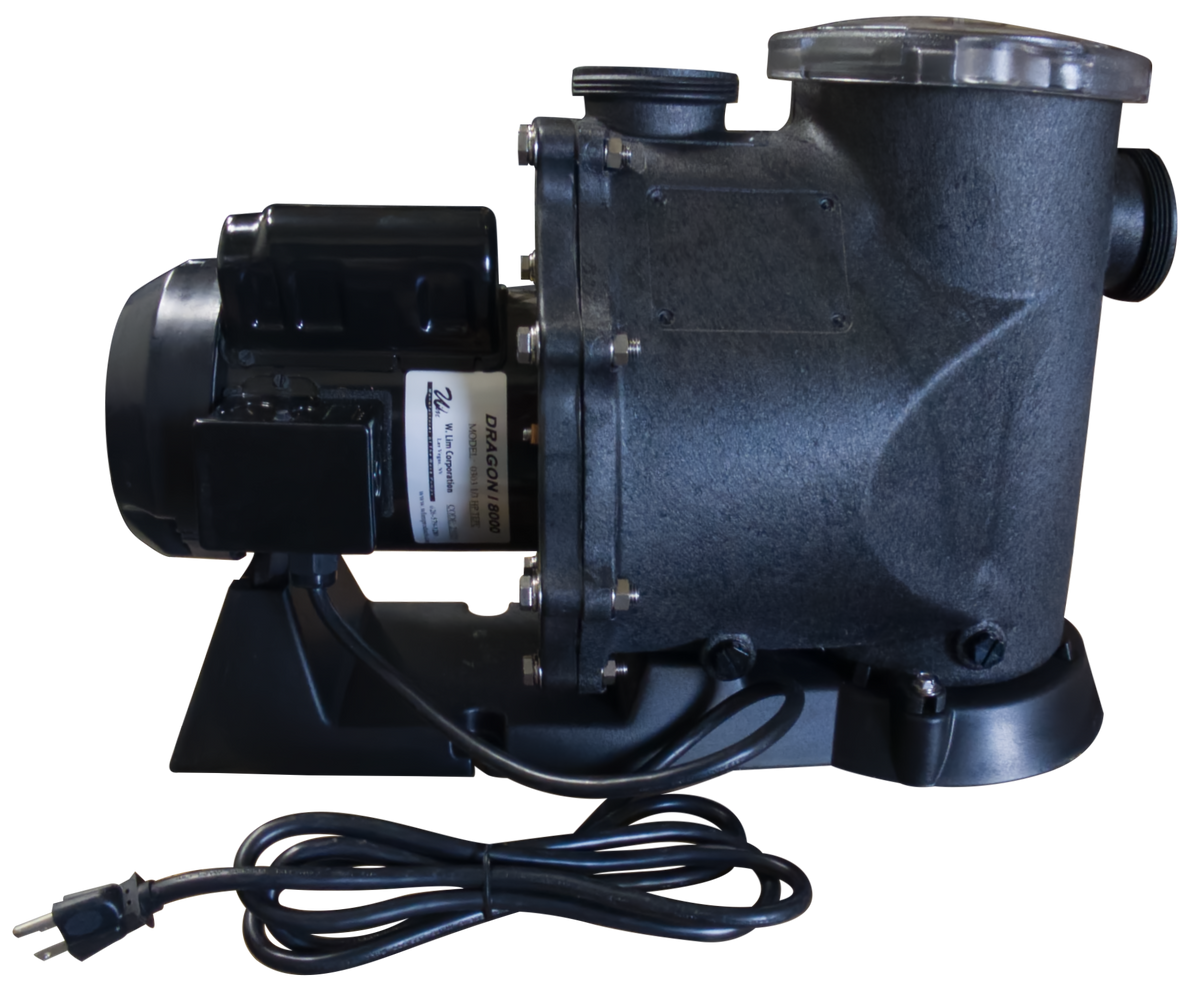

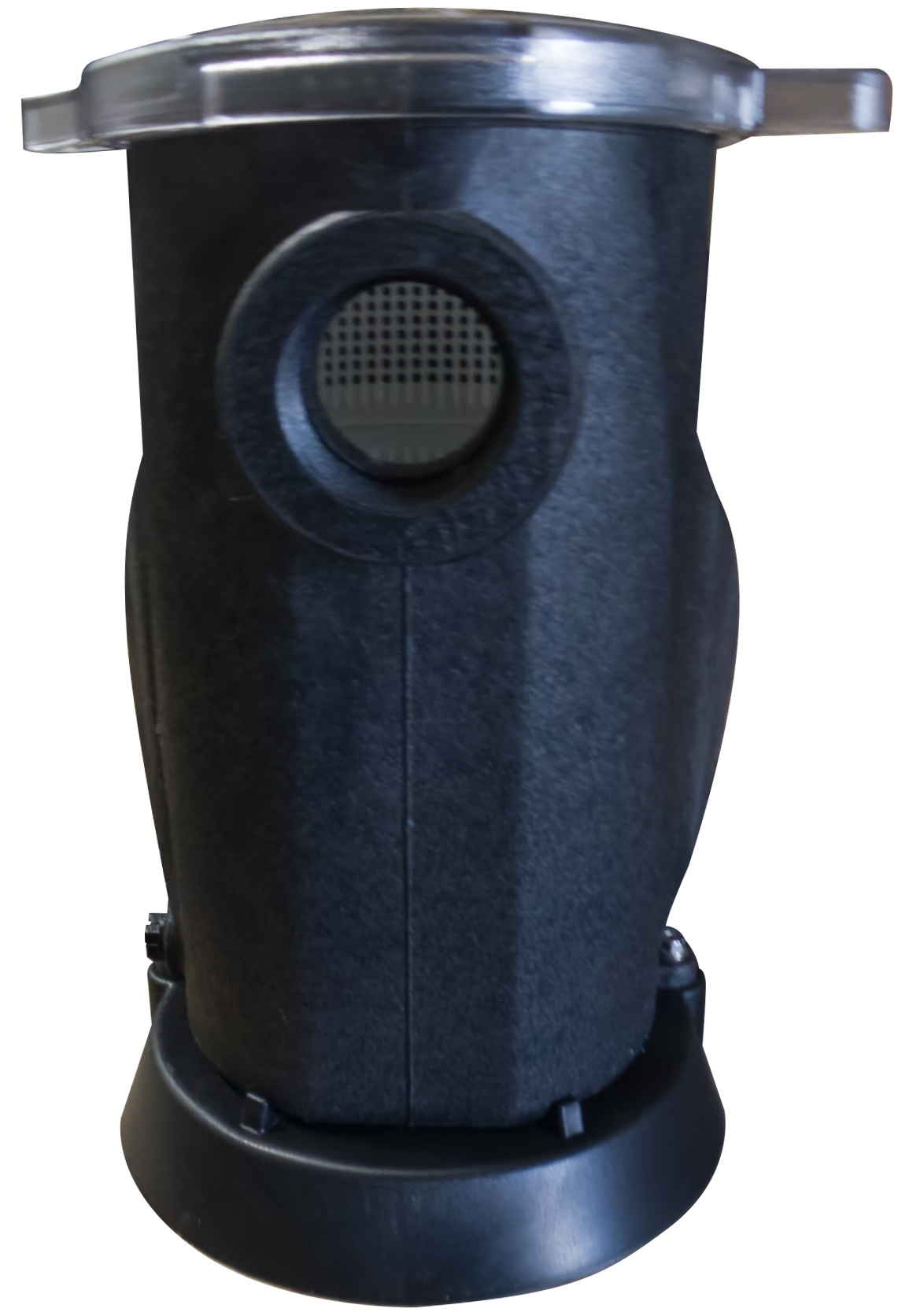

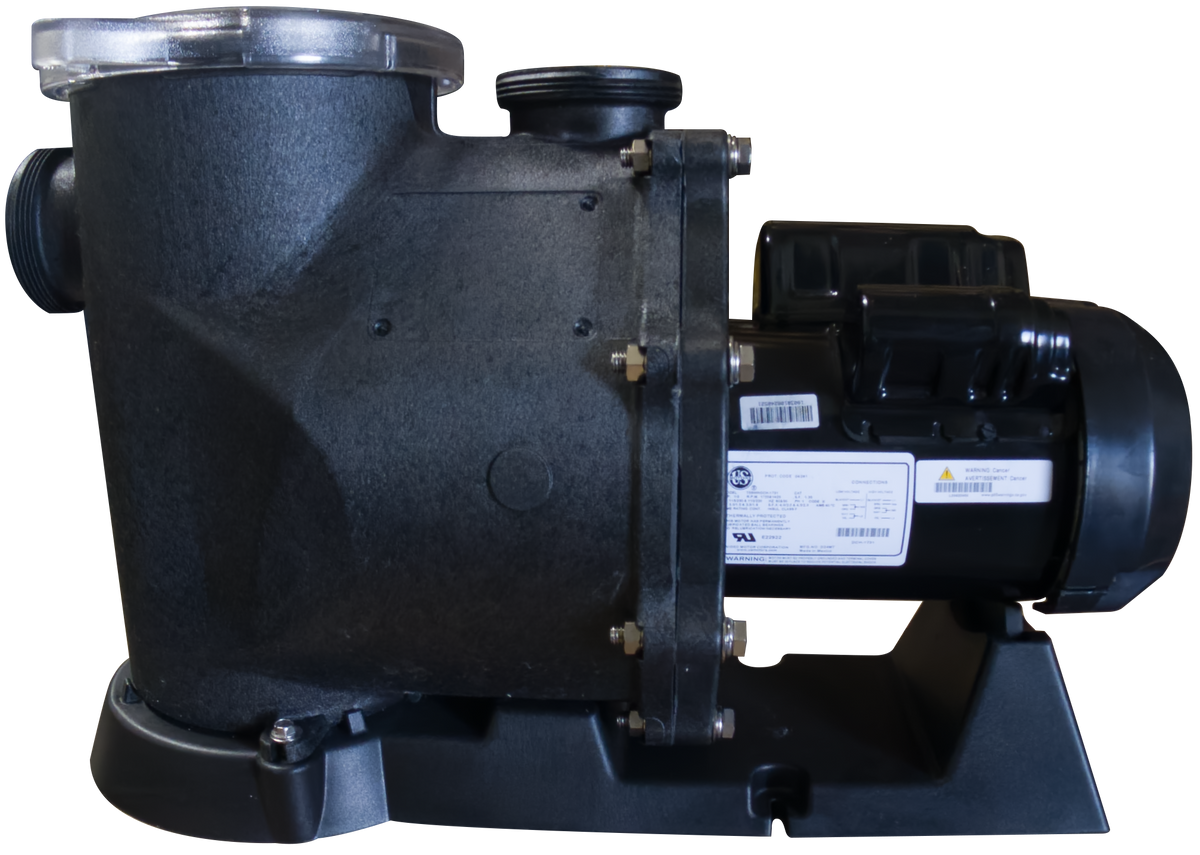

W Lim Dragon I External Pond Pump
W Lim Dragon I External Pond Pump
Regular price
$938.00 USD
Sale price
$938.00 USD
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping on equipment
Oversized item — ships direct from the factory by UPS Ground; the rate is calculated at checkout. No free-shipping threshold on pumps and UV sterilizers. Free pickup at our Miami store.
W. Lim's heavy-duty external pump line, built around a 1725 RPM motor. The slower turning speed is the point: less wear, quieter running and longer service life than a high-speed pump moving the same water, which is what makes the Dragon the usual choice for a serious koi system running year round.
Specifications
| Model | SKU | HP | Max head | Max amps | Flow at head | Max GPH / GPM | Watts | RPM | Volts | In / Out |
|---|---|---|---|---|---|---|---|---|---|---|
| Dragon I 7000 | 0302 | 1/4 HP | 26 ft | 2.9 A | 5,940 GPH @ 3.40 ft | 7,000 / 116 | 320 W | 1725 | 115/230 | 2" |
| Dragon I 8000 | 0303 | 1/3 HP | 28 ft | 4.3 A | 6,426 GPH @ 3.80 ft | 8,000 / 133 | 456 W | 1725 | 115/230 | 2" |
| Dragon I 9000 | 0304 | 1/2 HP | 32 ft | 6.2 A | 7,770 GPH @ 4.93 ft | 9,000 / 150 | 600 W | 1725 | 115/230 | 2" |
| Dragon I 12000 | 0305 | 1 HP | 35 ft | 8.7 A | 9,972 GPH @ 3.46 ft | 12,000 / 200 | 993 W | 1425/1725 | 115/230 | 2.5" |

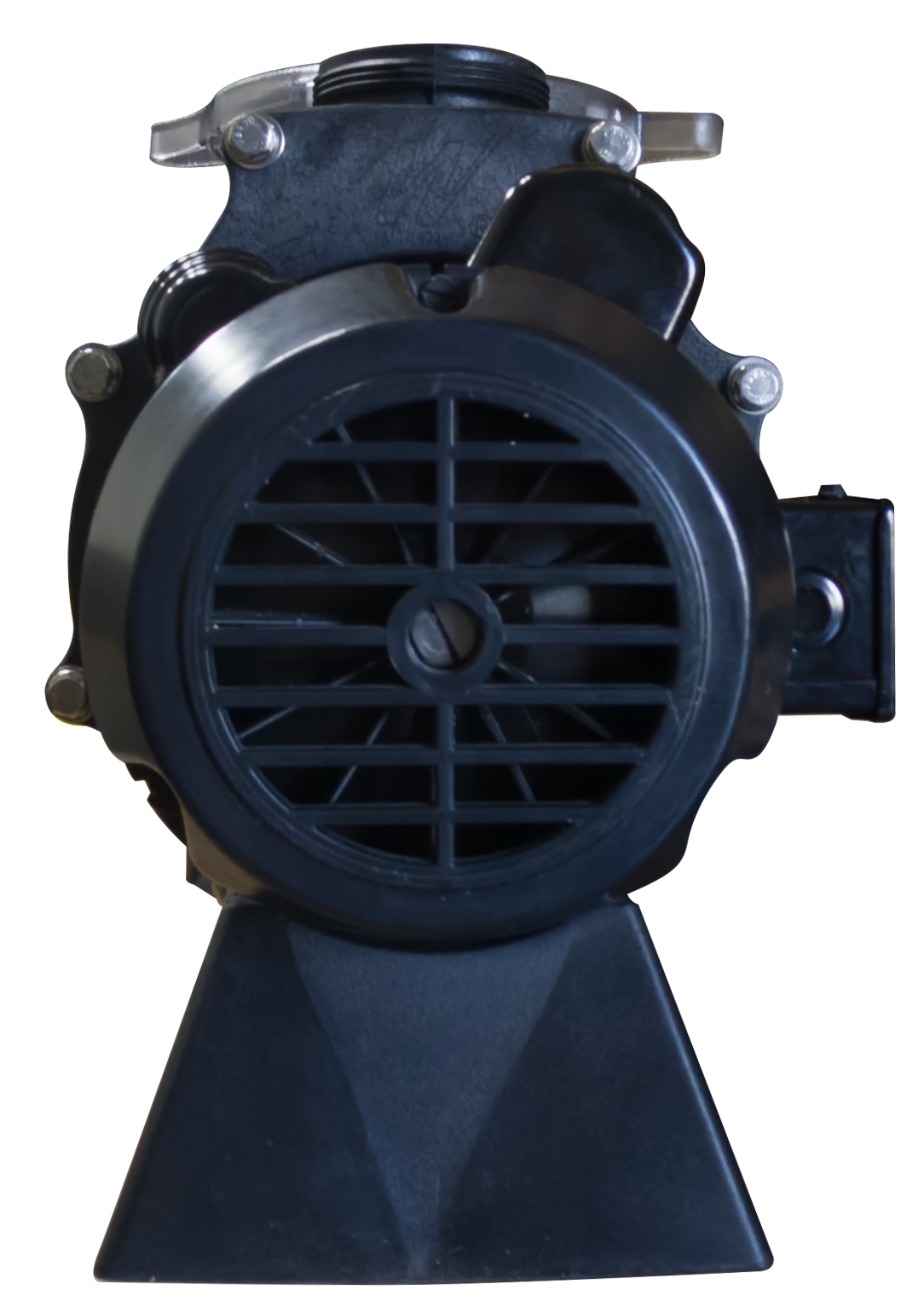

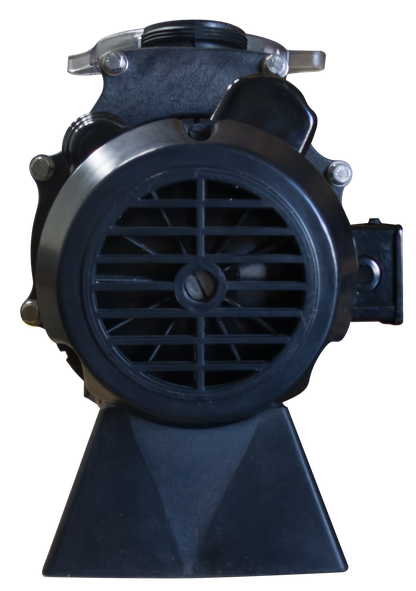

Motor: TEFC (totally enclosed, fan cooled) · Dimensions: 30 × 21 × 14 in · Weight: 36 lb
Flow at head is the figure W. Lim publishes on its pump sizing chart — real delivered flow against a stated lift, which is more useful than the max GPH rating on its own.
